FRP Flights

  • Overview of tank

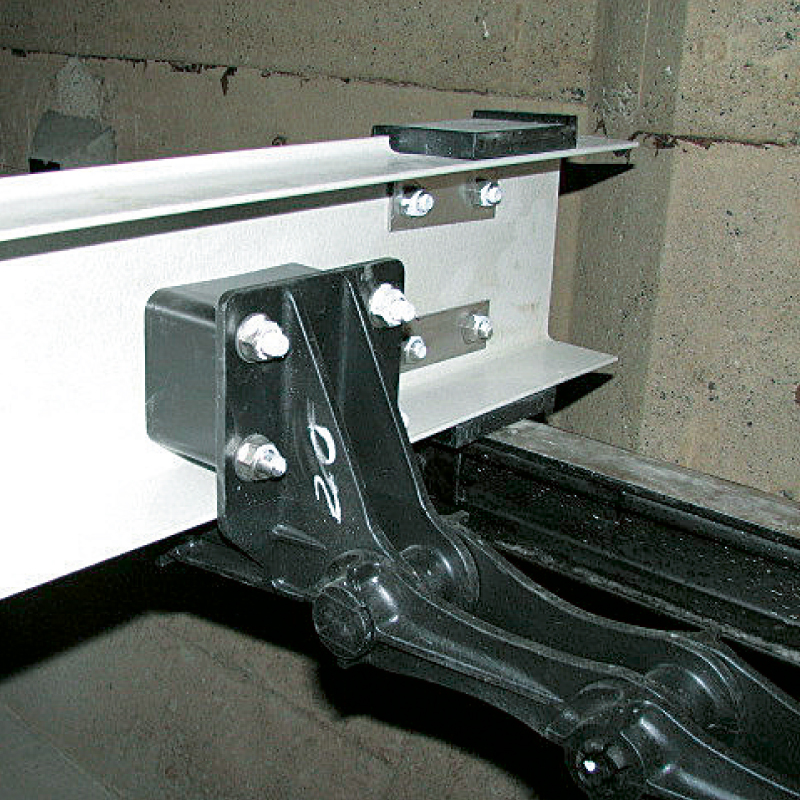

  • Example of assembled flight

Flights for sludge collector used to be made from American cypress or synthetic wood, but they were difficult to work with because of their weight, and strong buoyancy while underwater could disengage the chain. FRP flights overcome these defects, as they are light and have no buoyancy. They also have superior corrosion resistance.

Mounting Procedure

  • Total flight length should not exceed 6,000㎜.
  • Filler blocks are required to mount flights onto chain.
  • Two sets of filler blocks will be provided for each flight.



Chain and Shoe Attachment Dimensions

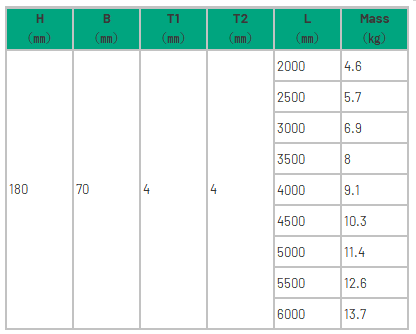

Dimensional Specification
